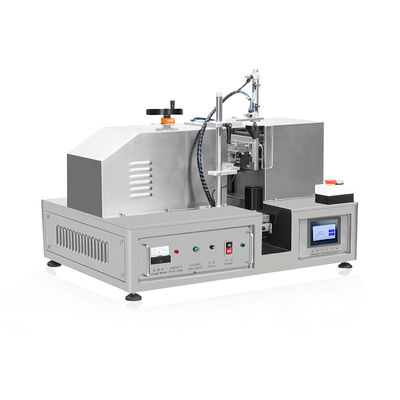

1800W 10pcs/Min Aluminum Tube Sealing Machine , 0.6MPa Tube Sealers
Product Details:
| Place of Origin: | China |
| Brand Name: | Alpha Pack |
| Certification: | CE |
| Model Number: | TFS-005 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1unit |
|---|---|
| Price: | USD4000-5000 per unit |
| Packaging Details: | wooden case |
| Delivery Time: | 10 work days |
| Payment Terms: | T/T |
| Supply Ability: | 50units per month |
|
Detail Information |
|||
| #304: | Stainless Steel Housing Case | Voltage: | 220V 1PH |
|---|---|---|---|
| Seal Type: | Ultrasonic Welding | Automatic Mode: | Semi-automatic |
| Application: | Cosmetics | Filler: | No Filler |
| High Light: | 1800W Aluminum Tube Sealing Machine,10pcs/Min Aluminum Tube Sealing Machine,0.6MPa Tube Sealers |
||
Product Description
Semi- auto Ultrasonic Tube Sealer
Features:
*Adopts ultrasonic sealing technology, no need warm up time, more stable and neat sealing, no distortion and low reject rate less than 1%.
* Manually feed the tube, press start button, machine could automatically identify the registration mark, sealing (with coding), end trimming.
* Independent R &D for digital ultrasonic automatic tracking electrical control box, no need manual adjust the frequency, with power auto compensation function, avoiding the reduction of power after long time use. Could freely adjust the power based on tube material and size, stable and minimum the fault rate, extend the life span than the normal electrical box.
* PLC with touch screen control system, providing friendly operation experience.
* Made of 304 stainless Steel, acid and alkali resistance, corrosion resistance.
*”Panasonic” high sensitive sensor with stepping motor, could track the registration mark precisely.
*Table top design, practical and compact.
| Model | TFS-005 |
| Frequency | 20kHz |
| Power | 1800W |
| Power Supply | AC220V/110V 1PH 50/60Hz |
| Sealing Diameter | 10-50mm (Custom-made available) |
| Tube Height | 10-250mm |
| Capacity | 10-18pcs/min |
| Air Pressure | 0.6MPa |
| Dimension | L850*W600*730mm |
| N.W | 85kgs |
