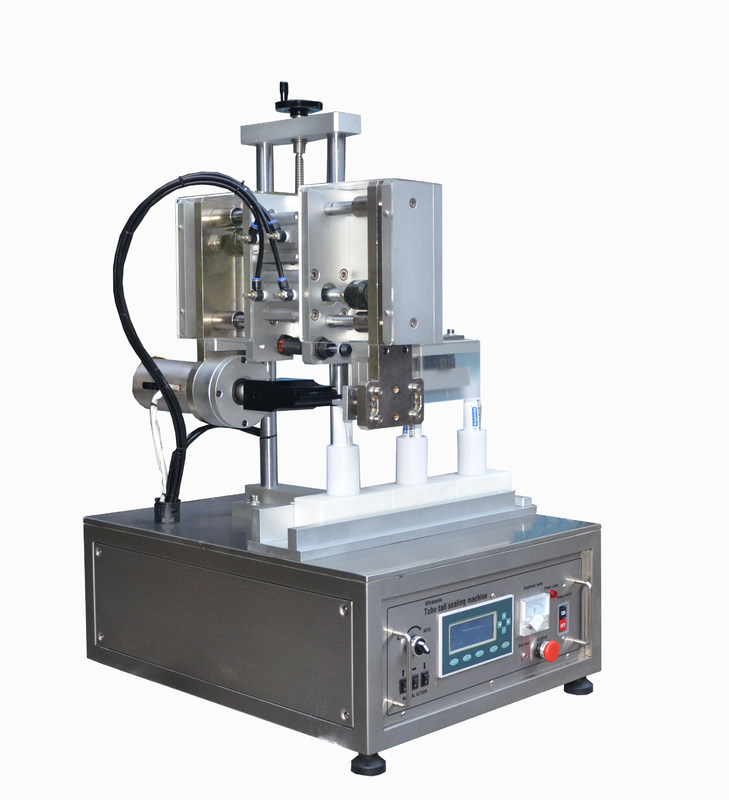

0.6MPa 180kg Ultrasonic Tube Filler And Sealer , Length 1000mm Tube Filling Sealing Machine
Product Details:
| Place of Origin: | china |
| Brand Name: | Alpha Pack |
| Certification: | CE |
| Model Number: | TFS-002 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1unit |
|---|---|
| Price: | USD2500-3500 per unit |
| Packaging Details: | wooden case |
| Delivery Time: | 10 work days |
| Payment Terms: | T/T |
| Supply Ability: | 50unit per month |
|
Detail Information |
|||
| Name: | Tube Filler | Machine Case: | 304 Stainless Steel |
|---|---|---|---|
| Material: | Plastic Tube | Certificate: | CE |
| Speed: | 15 Ppm | Voltage: | 220v 1ph |
| High Light: | 0.6MPa Ultrasonic Tube Filler And Sealer,180kg Ultrasonic Tube Filler And Sealer,Length 1000mm Tube Filling Sealing Machine |
||
Product Description
Economic Ultrasonic Tube Filler And Sealer Tube Filling Sealing Machine For Liquid and Cream
* The machine uses ultrasonic sealing technology, without warm up time, can be more stable and nice sealing, no distortion and low reject rate lower than 1%.
* Manually feed the tube, press start button, machine could automatically identify the registration mark, filling, sealing with coding, end trimming.
* Independent R &D for digital ultrasonic automatic tracking electrical control box, no need manual adjust the frequency, with power auto compensation function, avoiding the reduction of power after long time use. Could freely adjust the power based on tube material and size, stable and minimum the fault rate, extend the life span than the normal electrical box.
* PLC with touch screen control system, providing friendly operation experience.
* ”Panasonic” high sensitive sensor with stepping motor, could track the registration mark precisely.
* Uses quality filler for both liquid and cream, with filling volume tolerance within ±1%.
* With 304 stainless Steel machine case, acid and alkali resistance, corrosion resistance.
| Model | TFS-002 |
| Frequency | 20KHZ |
| Power | 2KW |
| Power Supply | AC220V/110V 1PH 50/60Hz |
| Filling Range | A:3-30ml B: 6-60ml C: 10-120ml D: 25-250ml (optional) |
| Filling Accuracy | ±1% |
| Capacity | 10-18pcs/min |
| Sealing Diameter | 10-50mm (Custom-made available) |
| Tube Height | 10-250mm |
| Air Pressure | 0.6MPa |
| Dimension | L1000*W780*1250mm |
| N.W | 180kgs |
