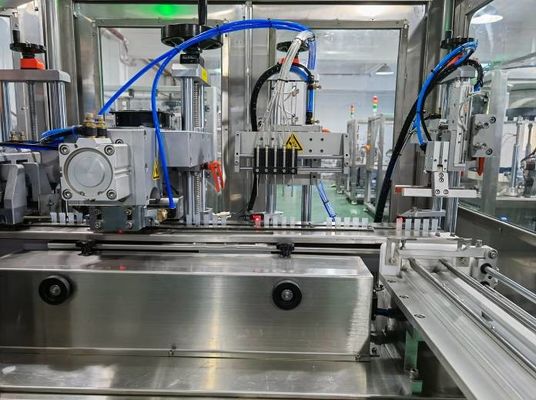

PE 10ml Filling Ultrasonic Tube Sealer Auto Sealing Trimming 2.6KW
Product Details:
| Place of Origin: | China |
| Brand Name: | Alpha Pack |
| Certification: | CE |
| Model Number: | TFS-105 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1units |
|---|---|
| Price: | USD24200-26000 per unit |
| Packaging Details: | wooden case |
| Delivery Time: | 15 work days |
| Payment Terms: | T/T |
| Supply Ability: | 20 unit per month |
|
Detail Information |
|||
| Material: | Stainless Steel Housing Case | Voltage: | 220v 1ph |
|---|---|---|---|
| Seal Type: | Ultrasonic Welding | Filler: | Piston Pump |
| Application: | Cosmetics | Automatic Mode: | Semi-automatic |
| High Light: | PE Ultrasonic Tube Sealer,10ml Filling Ultrasonic Tube Sealer,2.6KW semi automatic tube sealing machine |
||
Product Description
Automatic Tube Filling Sealing Machine
Features:
* Machine could automatically finish tube feeding, registration mark identifying, filling, sealing with coding, end trimming, tube out feeding, fully automatic, save labor cost and lower production cost.
* Machine is equipped with safety protection device and overload protection.
* Cam indexing system could position precisely for ten working stations.
*Adopts ultrasonic sealing technology, no need warm up time, more stable and neat sealing, no distortion and low reject rate less than 1%.
* Independent R &D for digital ultrasonic automatic tracking electrical control box, no need manual adjust the frequency, with power auto compensation function, avoiding the reduction of power after long time use. Could freely adjust the power based on tube material and size, stable and minimum the fault rate, extend the life span than the normal electrical box.
* PLC with touch screen control system with alarm system, could directly view the alarm information on the touch screen, could locate the problem and solve immediately.
* Made of 304 stainless Steel, acid and alkali resistance, corrosion resistance.
* No tube, no fill, no tube, no seal function, reducing the machine and mould loss.
*Adopts Anti-dripping filling nozzle.
Power supply: AC220V 50/60HZ singe phase
Power: 2.6Kw
Working air pressure: 0.6Mpa
Filling pump: 5 sets of ceramic pumps Suitable
material: Essence or water like products
Suitable tube material: PE (need to receive strip tube samples first for machine test)
Filling Range: 0.3-10ml
Filling accuracy: ±0.5%
Max. Sealing Length.: 140mm
Max. height: 120mm
Capacity: 15-20 tube strips/min
Dimension: 1300*1300*1950mm
Packing size: 1450*1350*1890mm
Gross weight: 514Kg HS code: 84223090
Machine Body: 304# stainless steel
Working process:
Auto pick-up the tube strip → Auto Filling → Auto sealing → Auto trimming → auto tube strip convey out
Main Parts:
PLC: Mitsubishi
HMI: Weinview
Cylinder and Solenoid Valve: AirTAC
Relay: Omron
Ultrasonic system: Digital auto frequency Tracking
