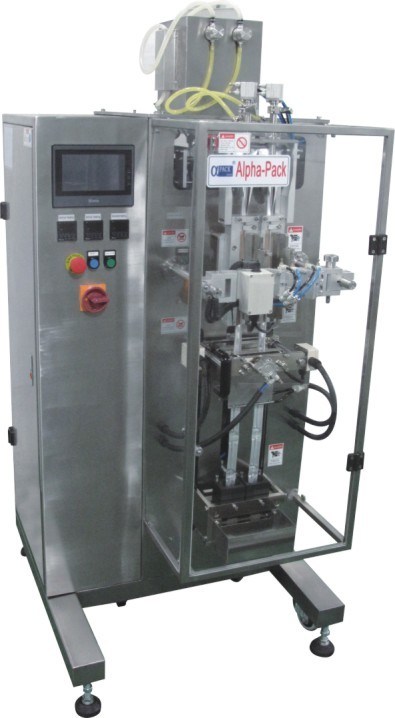

Vertical Measuring FFS Packing Machine Full Form Sachet 3 Side Seal 80ppm
Product Details:
| Place of Origin: | China |
| Brand Name: | Alpha Pack |
| Certification: | CE |
| Model Number: | PM-190H |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD 10000-20000 per set |
| Packaging Details: | standard export wooden case |
| Delivery Time: | 30 workdays |
| Payment Terms: | T/T L/C |
| Supply Ability: | 20 sets per month |
|
Detail Information |
|||
| Name: | FFS Packing Machine | Film Used: | Laminated Film |
|---|---|---|---|
| Machine Material: | 304 Stainless Steel Case | Speed: | 80ppm |
| Voltage: | 220V 1PH | Application: | Food , Chemical |
| High Light: | 220V 1PH FFS Packing Machine,80ppm FFS Packing Machine,80ppm ffs filling machine |
||
Product Description
Vertical Measuring Ffs Packing Machine Full Form Sachet 3 Side Seal 80ppm
CE approved Automatic vertical FFS 3 side seal sachet packaging machine
| Model | PM-190H | FM-190B3 |
| Bag length | Max. 190mm | Max. 180mm |
| Bag width | Max.90mm*2 | Max. 55mm*3 |
| Film width | Max. 1900mm | Max. 150mm |
| Lanes number | 1 | 1 |
| speed | 20-40 ppm | 20-35 ppm |
Application:
Automatic packaging of liquid, powder or granule in 4 side sealed sachet for food, pharmaceutical, chemical and other industries.
Features:
1. The machine can automatically complete the products measuring, conveying and feeding, filling and bag forming, date code printing, bag sealing and cutting;
2. Servo motor driven heat seal film pulling system;
3. High sensitive fiber optic photo sensor can automatically trace color mark accurately;
4. PLC control system combined with touch screen, can easily set can change the packing parameters, daily production output and self-diagnostic machine error can be viewed directly from the screen;
PID temperature controller monitors heat sealing temperature within ±1℃.
Our Services:
Pre-sale service
1. Equipment selection;
2. Customized products according to the special requirements of customers;
3. Free training of technical personnel for customers;
4. Free professional and technical engineers will plan the site and design the best process and scheme.
5. Product acceptance;
6. Assist the owner in drafting the construction plan;
