2000ml Infeed Conveyor Premade Pouch Filling Machine Rotary Doypack Touch Screen

2000ml Infeed Conveyor Premade Pouch Filling Machine Rotary Doypack Touch Screen

Product Details:

Place of Origin: China
Brand Name: Alpha Pack
Certification: CE
Model Number: AP-8BT

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: USD30000-50000 per set
Packaging Details: stanard export wooden case
Delivery Time: 40 work days
Supply Ability: 20 sets/ month
Get Best Price Contact Now

Detail Information

Material: 304 Stainless Machine Case Keywords: Premade Pouch Packing Machine
Speed: 20-30 Ppm
High Light:

2000ml Premade Pouch Filling Machine

,

Infeed Conveyor Premade Pouch Filling Machine

,

Doypack premade pouch packing machine

Product Description

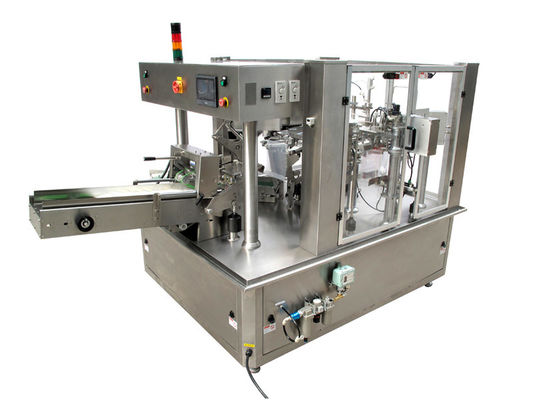

Rotary Premade Pouch Filling Sealing Doypack Machine

Model No. AP-8BT AP-8BT-XL
Max. filling volume(ml) 2000 5000
Bag length (mm) 150-300 200-450
Bag width (mm) 100-250 150-300
Max. Speed (ppm) 20-45 ppm 15-35 ppm
Pouch format Flat, Stand-up, Spout, Side gusset pouch, etc…
Pouch feeding Pouch feeding conveyor

Standard Feature:

  1. Intermittent rotary machine with 6 or 8 Stations is designed for handling Pre-made pouches such as Flat and Stand-up Pouches (with/without Zip)
  2. Operating and adjusting via TOUCH SCREEN.
  3. Fault indication on the TOUCH SCREEN.
  4. Hygienic Construction and Easy cleaning.
  5. High quality and long life of all machine part.
  6. Integration of various filler, such as Auger filler weighting machine, volumetric doser, Liquid doser, Paste doser and other special doser.
  7. Simple integration of peripheral equipment.

Safety Device:

  1. No pouch – No fill – No seal
  2. Pouch open error – No fill – No seal
  3. Heater disconnection alarm
  4. Machine stop at abnormal air pressure
  5. Machine stop when safety guard is open or electrical cabinet is open
  6. Safety guard
  7. Non-open Pouches could be recycled

Packing Process:

  1. Pouch feeding conveyor & pick up the pouch
  2. Date coding & Zipper open device (option)
  3. Open the bottom of pouch, for self-stand pouch
  4. Pouch top opening
  5. First filling position
  6. Second filling position (option)
  7. First sealing position
  8. Second sealing position (cold seal) and Pouch feed out conveyor

Standard Equipment:

  1. Bag Infeed Conveyor
  2. Bag opening blade with full opening detector
  3. P.I.D. temperature controller
  4. Stainless Steel Construction
  5. Graphical color-touch panel
  6. Discharge conveyor
