POF PVC PE Heat Shrink Wrap Packaging Machine 14KW 220V 3ph
Product Details:
| Place of Origin: | China |
| Brand Name: | Alpha Pack |
| Certification: | CE |
| Model Number: | TLA-1245 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD 3000-5000 per set |
| Packaging Details: | standard export wooden case |
| Delivery Time: | 20 workdays |
| Payment Terms: | T/T L/C |
| Supply Ability: | 50 sets per month |
|
Detail Information |
|||
| Name: | Shrink Wrapping Machine | Material Used: | POF |
|---|---|---|---|
| Keyword: | Shrink Tunnel | Out Case: | Carbon Steel Or Stainless Steel |
| Speed: | 60ppm | Certificate: | CE |
| High Light: | 14KW Shrink Wrap Packaging Machine,3ph Shrink Wrap Packaging Machine,3ph heat shrink packaging machine |
||
Product Description

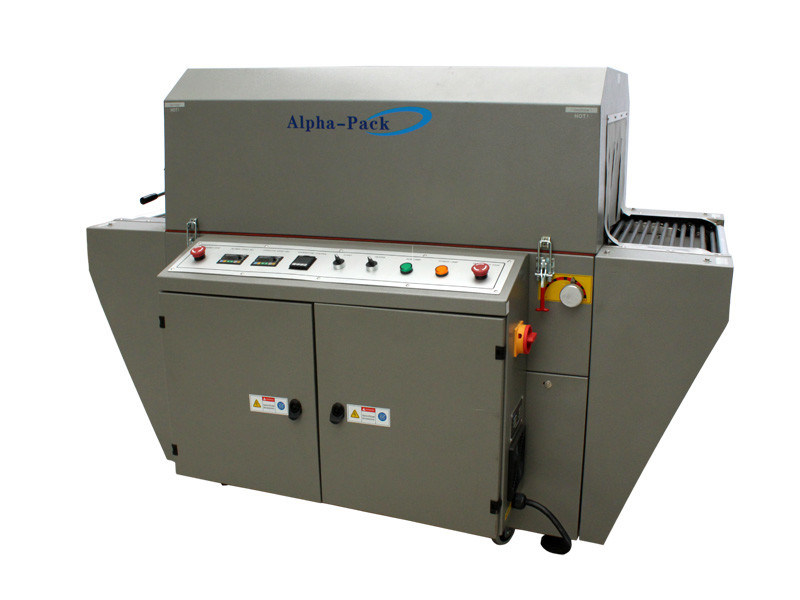

POF PVC PE Heat Shrink Wrap Packaging Machine 14KW 220V 3ph
POF PVC PE Heat Shrink Tunnel Shrink Wrapping Machine
shrink wrapping machine shrink tunnel
| Model No. | TLA-1245 | TSS-1845 | TLA-1265 | TSS-1865 |
| Tunnel Size (LxWxH) (mm) | 1200X450X300 | 1800X450X300 | 1200X650X400 | 1800X650X400 |
| Machine Size (LxWxH) (mm) | 1840X1080X1250 | 2440X1080X1250 | 1840X1280X1350 | 2440X1280X1350 |
| Power | 10 KW | 17-20 KW | 14KW | 20-26 KW |
| Voltage | 380-400V/3ph, 50Hz or 220V/3ph, 60 Hz | |||
| Packed machine size (LxWxH) (mm) | 1940x1160x1460 | 1940x1340x1560 | 2530x1160x1450 | 2660x1310x1600 |
| Machine weight NW/GW (kg) | 470/570 | 580/720 | 500/640 | 690/900 |
Standard Feature
- Thermal circulation system using heat integrated design, rapid temperature raises up.
- SSR and PID temperature control, temperature tolerance ±1 oC
- Adopt long metal heater, durable and stable.
- Heater drawer design, for easy inspection and heater connection changing.
- Conveyor speed controlled by frequency inverter, speed adjustable 10-40 m/min.
- Standard live roller design
- Adjustable airflow vents control the airflow volume by frequency inverter
- Both side lateral airflow direction is Adjustable
- Insulation layer between heating zone and outer skin of about 100mm to minimize heat loss.
Options:
- Stainless Steel Machine out casing
- Openable Tunnel top cover
- Cooling system exit
- Dead Roller construction
After-sales service
1. One-year warranty, as long as there is a non-human failure within one year, the accessories will be replaced free of charge.
2. Parts are replaced, don't worry about the parts being damaged or not being sold after the machine is sold. Our on-site factory with hundreds of employees is always at your service.
3. Engineers are stationed for life for maintenance. If your equipment fails, we will arrange for an engineer to repair it.
4. Online guidance, we have opened online services, as long as your equipment fails, our engineers will conduct one-to-one troubleshooting as soon as possible.
5. Feedback survey, requiring engineers to bring questionnaires to fill in the satisfaction of engineers and the use of equipment.
