4 Filling Head Frequency converter Servo Piston Filler Liquid Water Cream PLC
Product Details:
Place of Origin: | China |
Brand Name: | Alpha Pack |
Certification: | CE |
Model Number: | AFLS-840 |
Payment & Shipping Terms:
Minimum Order Quantity: | 1unit |
---|---|
Price: | USD18000-28000 per unit |
Packaging Details: | wooden case |
Delivery Time: | 40 work days |
Payment Terms: | T/T L/C |
Supply Ability: | 50 units per month |
Detail Information |
|||
#304: | Stainless Steel Housing Case #304 | Name: | Auto Liquid Filling Machine |
---|---|---|---|
Keyword: | Filling Machine | Speed: | 50 Bpm |
Product: | Like Shampoo, Sauce, Fruit Juice | Pump: | Piston Pump |
High Light: | 4 Filling Head Servo Piston Filler,Frequency converter Servo Piston Filler,PLC piston filling equipment |
Product Description

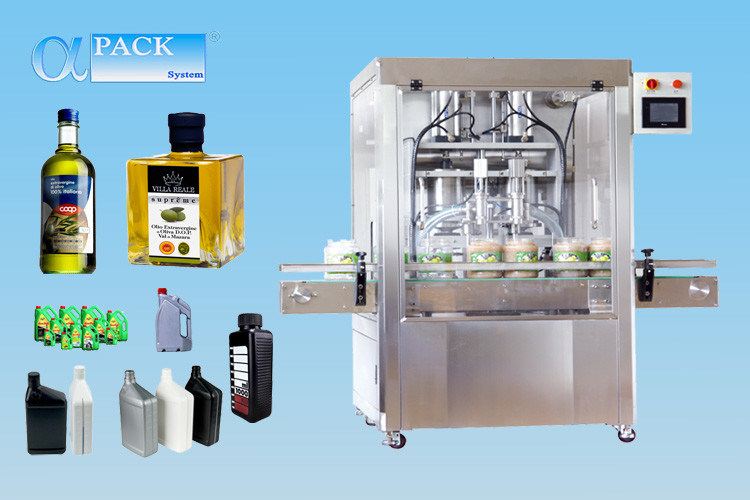

CE certified Automatic 4-head Servo Driving Liquid Water Cream Piston Type Filling Machine
Features:
1.Uses advanced PLC control, with a HMI touch screen operation;
2.All contact parts are made of #316L stainless steel, and machine casing is made of 304 stainless steel, fully fit for food sanitation standard;
3.Precise stainless steel piston cylinder fillinging technology ensures accurate and consistent filling, and makes seal ring more durable; 4.Frequency converter driven; filling volume is set on touch screen; easy to clean. It is used for filling sauces, liquid creams and liquids and so on.
Application:
1. The machine is used for filling liquids, creams and sauces and so on.
Parameters:
Item | AFLS-120-8 | AFLS-500-8 | AFLS-1000-8 | AFLS-2500-8 | AFLS-5000-8 |
Filling range | (10-120)ml×8 | (50-500)ml×8 | (100-1000)ml×8 | (250-2500)ml×8 | (500-5000)ml×8 |
Filling speed | 30-60bottles/min | 30-50bottles/min | 30-40bottles/min | ||
Filling precision | ≦±1liquid ≦±2liquid cream | ||||
Power | AC380V/50/60Hz 3KW | AC380V/50/60Hz 3.5KW | AC380V/50/60Hz 5KW | AC380V/50/60Hz 5.5KW | |
Weight | 950㎏ | ||||
Pressure range | 0.4-0.6Mpa | ||||
Host dimension |
1660×1330×2100mm | 1940×1330×2100mm | 2360×1450×2100mm | 2800×1450×2180mm |
